Place of Origin: | china |
Brand Name: | SS-beehive frame |
Certification: | ISO9001:2008 |
Model Number: | Plastic Bee hive frame |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | $0.95-$1.3/pc |
Packaging Details: | 51*25*50cm for wooden bee hive frames | chinese bee frame | beehive frame |
Delivery Time: | 20-25 days after receiving your prepayment |
Payment Terms: | TT, Western Union, L/C, D/A, D/P, MoneyGram |
Supply Ability: | 100000 Piece/Pieces per Month |
Model Number: | Plastic Bee Frame | Material: | Food-grade Plastic |
---|---|---|---|
Color:: | Black, Other Color Is Available | Cell Size:: | 4.9 Mm, 5.3mm |
Size: | 48.3*44.8*15.9cm | Application: | Beekeeping |
OEM: | Available | Type: | 61/8" Langstroth Hive Frame |
Beekeeping Wood Beehive Frame for Bee Hive Box
Introduction of full deep plastic frames with foundation :
Supersweet company is specialized in developing,
producing and exporting bee products including propolis extract, royal jelly, beepollen,beeswax and
beekeeping tools. Our products have sold very well in Asia, USA, Canada, Russia,
Africa, USA, Japan and Europe owing to our competitive prices, quality oriented products, prompt delivery
and our all-sided, efficient service.
We also have the ability to develop new products as your design and sample
Introduction of full deep plastic frames with foundation :
1)A grid which is placed over the top of the brood chamber between it and the super in order to prevent
the queen laying eggs in the honey stores.
2)The worker bees are able to squeeze through the gaps in the excluder but the queen and drones are too
large to pass through.
3) Queen excluders are only put on the hive if a super is present and therefore should not be used in winter
if a super isn't left on the hive.
4)They are usually made of either wire with a wooden frame or zinc with slots.

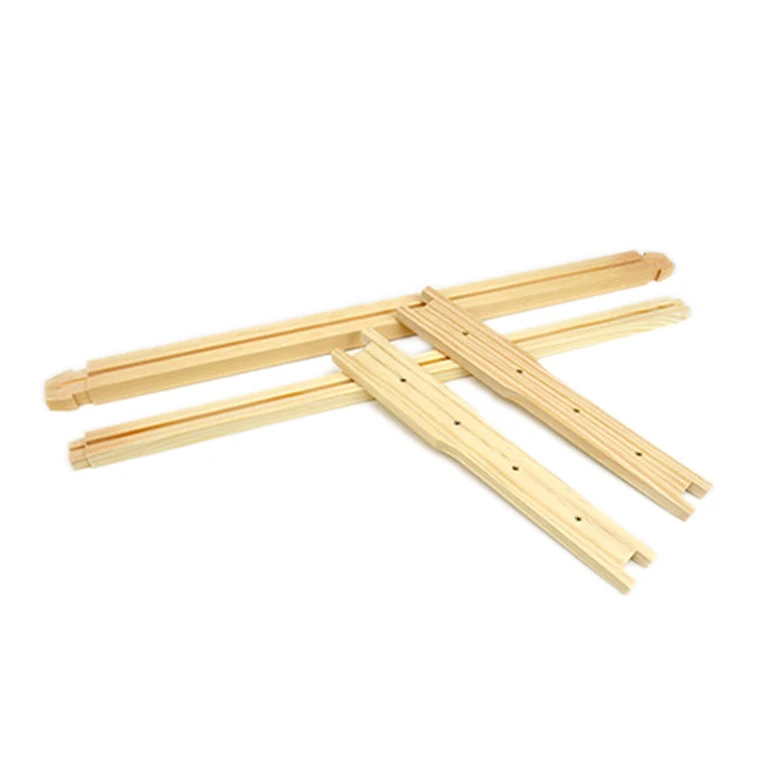

Unassembled deep bee frames

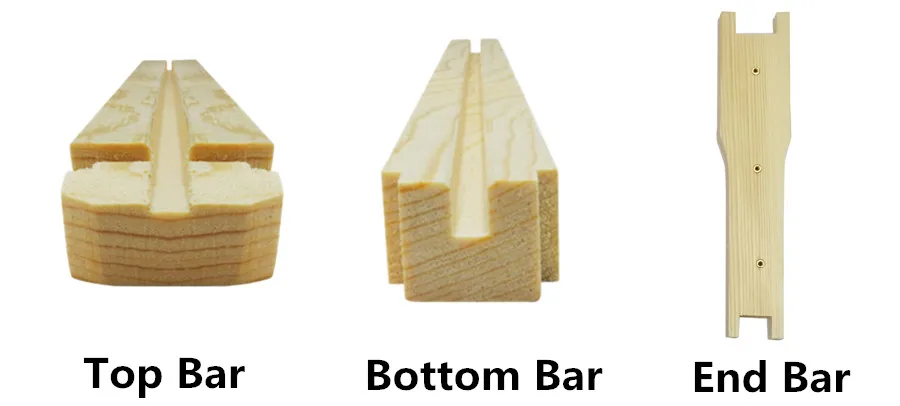

Accessory of our bee frame:
Grooved top bar with chamfered end |
Grooved bottom bar |
Hoffman end bar with holes and copper eyelets |
Wood/Timber choices:
Fir |
Radiata Pine |
Pinus Sylrestris |
Yellow Pinee |
New Zealand pine |
Araucaria |
Red Cedar |
Yellow Cedar |
Deep Bee frame Measure:
Wood Species | E.Pine |
Top Bar Length | 19″ |
Top Bar Width | 1″ |
Top Bar Thickness(W) | 11/16″ |
Top Bar Thickness(G) | 5/8″ |
Top Bar Groove Width | 5/32″ |
TB End Thickness: Max Min |
1/2″ 7/16″ |
Top Bar Eng Angle | 9° |
TB Wedge Thickness | 5/32″ |
End Bar Height | 9-1/8″ |
End Bar Width | 1-3/8″ |
End Bar Thickness | 3/8″ |
End Bar 1/8″ Holes | Yes |
Bottom bar length(G) | 17-3/4″ |
Bottom bar width(G) | 3/4″ |
Bottom bar thickness | 1/2″ |
Assembled frame Hgt. | 9-3/16″ |
Top bee space | 3/16″ |
Bottom bee space | 9-32″ |

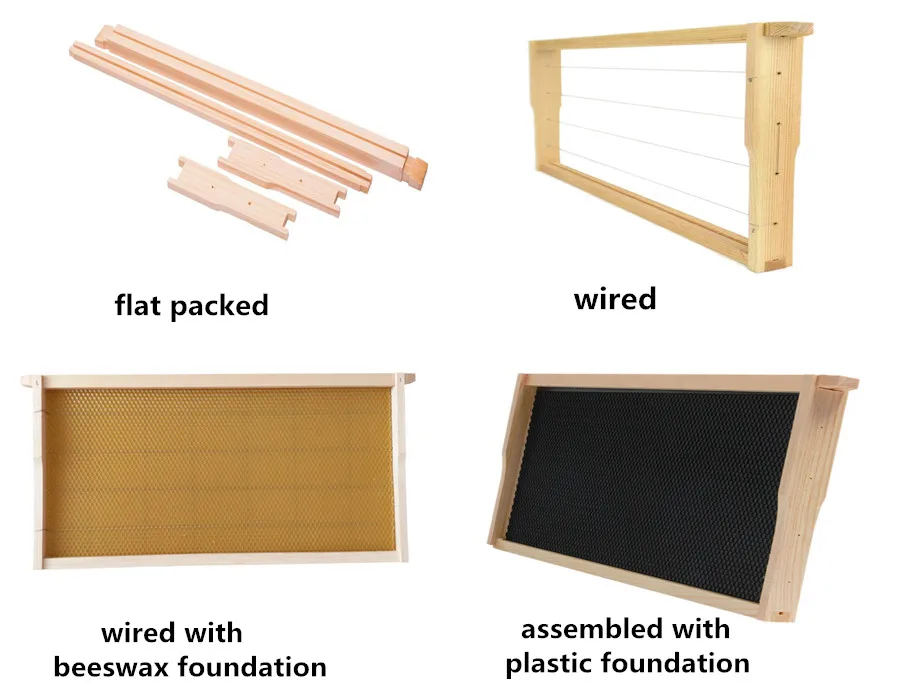

1 | Unassembled/flat packed bee frame |
Including: grooved top bar grooved bottom bar hoffman end bars holes and eyelets on end bars |
2 | Wired bee frame |
Including: grooved top bar grooved bottom bar hoffman end bars holes and eyelets on end bars 201/304 stainless steel wire |
3 | bee frame wired with beeswax foundation |
Including: grooved top bar grooved bottom bar hoffman end bars holes and eyelets on end bars 201/304 stainless steel wire beeswax foundation sheet |
4 | assembled bee frame with plastic foundation |
Including: grooved top bar grooved bottom bar hoffman end bars plastic foundation sheet |

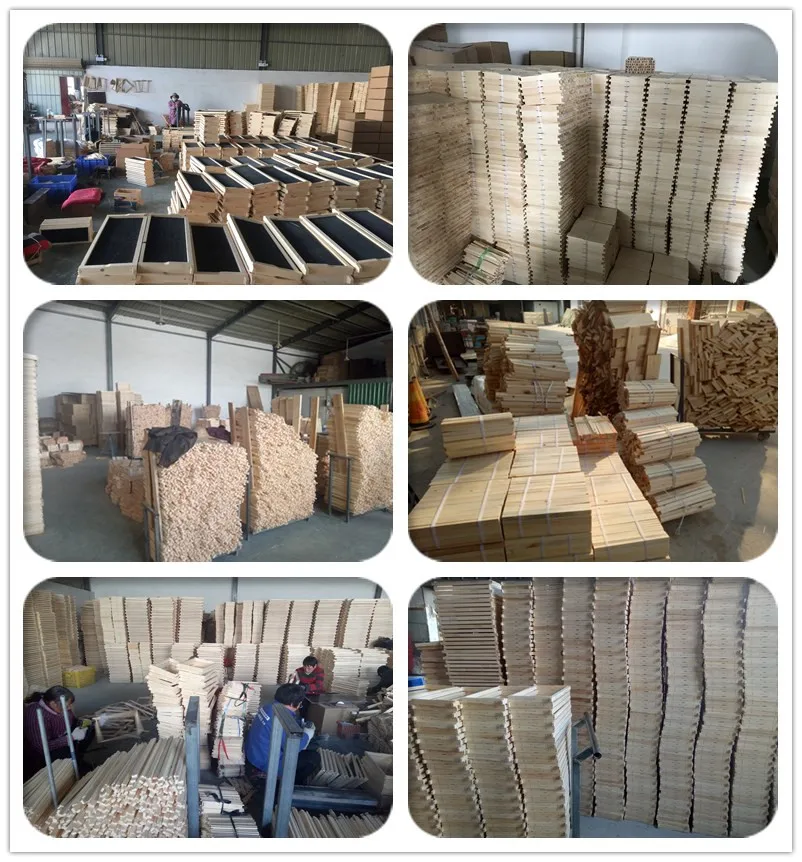

Henan Super-Sweet Biotechnology Co.,Ltd is the largest scale beekeeping tools manufacturer in northern part of China. It covers a surface area of 98000 square meters workshop with over 500 employees. The output of bee frames and beehives in China total market have been to occupy half.
We are pround of our bee frame quality, which helps us to get the market share. We hereby compare our frames with several bee frame suppliers worldwide, here is the details:

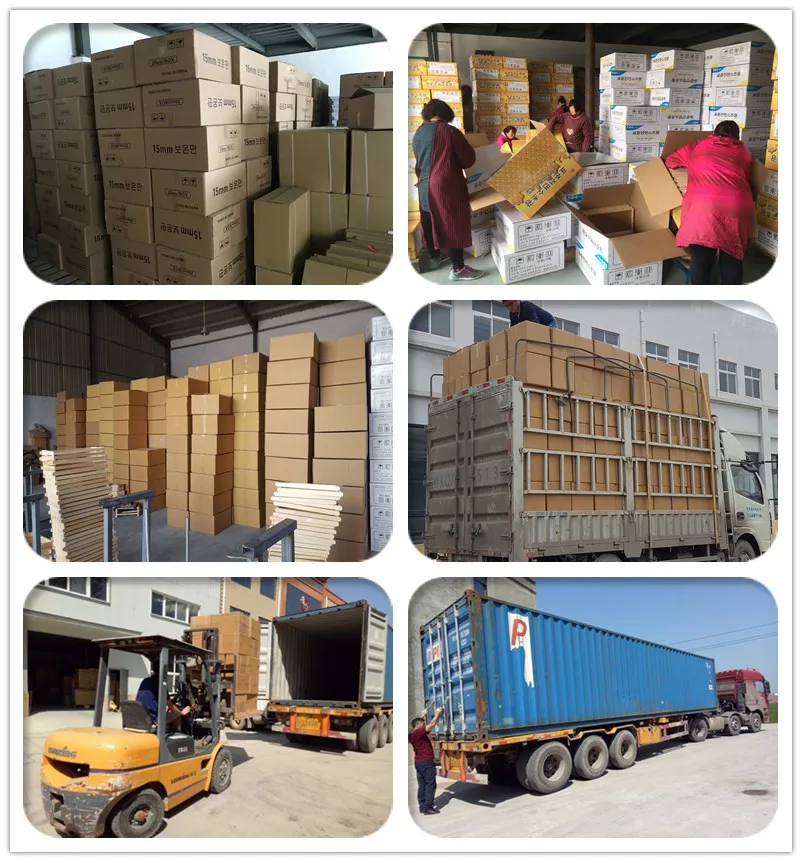

Unassembled frames /flat packed: 100pcs/ctn. Carton size: 50*26*50cm
Assembled frames: 20pcs/ctn. Carton size: 57*51*27cm
Customized packing (logo printing etc.), please contact xu@supersweetgroup.com
OUR SERVICES
At Henan Kabu Agricultural Technology Co.,Ltd we care about making certain our products arrive in the best condition exactly when you need them. Service excellence is at the heart of our ethos no matter where you are.
With a partnership approach in mind we maintain a continual dialogue with all our customers so that we can adapt and continually improve the way we work.
CUSTOMER SATISFACTION
Every member of our customer service team is personally involved in providing exceptional service with a professional commitment to continually improve and benchmark against best practice. Yamada beekeeping’s service solutions are developed and shaped by our customers in order to ensure we meet the ever changing needs of the markets we operate in.
